DB2 Snapshot information | Monitor level : Lock
- Jha Chandan
- Feb 19, 2021
- 2 min read
Updated: Feb 20, 2021
In this article we will see and learn how to get snapshot information about databases and instances for monitor level Lock.
1) get snapshot for locks for application applid appl-id : List of locks held by the application. Lock wait information requires the lock switch.
Example:
db2 connect to db <db_name>
db2 list applications show detail
db2 get snapshot for locks for application applid appl-idOutput:
[db2inst1@l00lnx1186 ~]$ db2 connect to BFENT
Database Connection Information
Database server = DB2/LINUXX8664 11.5.0.0
SQL authorization ID = DB2INST1
Local database alias = BFENT
[db2inst1@l00lnx1186 ~]$ db2 list applications show detail |more
CONNECT Auth Id
Application Name Appl.
Application Id Seq# Number of
Coordinating Coordinator Status Status Change T
ime DB Name DB Path
Handle
Agents
member number pid/thread
--------------------------------------------------------------------------------
------------------------------------------------ -------------------- ----------
-------------------------------------------------------------- ----- ----------
---------------- --------------- ------------------------------ ---------------
----------- -------- --------------------
DB2INST1
db2evmg_DB2DETAILDEA 59
*LOCAL.DB2.210219122006 00001 1
0 56 Connect Completed Not Collected
BFENT /home/db2inst1/db2inst1/NODE0000/SQL00001/MEMBER0000/
DB2INST1
db2dbctrld 52
*LOCAL.DB2.210219121959 00001 1
0 49 Connect Completed Not Collected
BFENT /home/db2inst1/db2inst1/NODE0000/SQL00001/MEMBER0000/
DB2INST1
db2cmpd 58
*LOCAL.DB2.210219122005 00001 1
0 55 Connect Completed Not Collected
BFENT /home/db2inst1/db2inst1/NODE0000/SQL00001/MEMBER0000/
DB2INST1
[db2inst1@l00lnx1186 ~]$ db2 get snapshot for locks for application applid 52
SQL1611W No data was returned by Database System Monitor.
[db2inst1@l00lnx1186 ~]$2) get snapshot for locks for application agentid appl-handle : List of locks held by the application. Lock wait information requires the lock switch.
Example:
db2 connect to db <db_name>
db2 list applications show detail
db2 get snapshot for locks for application agentid appl-handleOutput:
[db2inst1@l00lnx1186 ~]$ db2 connect to BFENT
Database Connection Information
Database server = DB2/LINUXX8664 11.5.0.0
SQL authorization ID = DB2INST1
Local database alias = BFENT
[db2inst1@l00lnx1186 ~]$ db2 list applications show detail |more
CONNECT Auth Id
Application Name Appl.
Application Id Seq# Number of
Coordinating Coordinator Status Status Change T
ime DB Name DB Path
Handle
Agents
member number pid/thread
--------------------------------------------------------------------------------
------------------------------------------------ -------------------- ----------
-------------------------------------------------------------- ----- ----------
---------------- --------------- ------------------------------ ---------------
----------- -------- --------------------
DB2INST1
db2evmg_DB2DETAILDEA 59
*LOCAL.DB2.210219122006 00001 1
0 56 Connect Completed Not Collected
BFENT /home/db2inst1/db2inst1/NODE0000/SQL00001/MEMBER0000/
DB2INST1
db2dbctrld 52
*LOCAL.DB2.210219121959 00001 1
0 49 Connect Completed Not Collected
BFENT /home/db2inst1/db2inst1/NODE0000/SQL00001/MEMBER0000/
DB2INST1
db2cmpd 58
*LOCAL.DB2.210219122005 00001 1
[db2inst1@l00lnx1186 ~]$
[db2inst1@l00lnx1186 ~]$
[db2inst1@l00lnx1186 ~]$
[db2inst1@l00lnx1186 ~]$ db2 get snapshot for locks for application 59
SQL0104N An unexpected token "59" was found following "APPLICATION".
Expected tokens may include: "AGENTID". SQLSTATE=42601
[db2inst1@l00lnx1186 ~]$
[db2inst1@l00lnx1186 ~]$
[db2inst1@l00lnx1186 ~]$ db2 get snapshot for locks for application agentid 59
Application Lock Snapshot
Snapshot timestamp = 02/19/2021 14:25:16.249368
Application handle = 59
Application ID = *LOCAL.DB2.210219122006
Sequence number = 00001
Application name = db2evmg_DB2DETAILDEA
CONNECT Authorization ID = DB2INST1
Application status = Connect Completed
Status change time = Not Collected
Application code page = 1208
Locks held = 0
Total wait time (ms) = Not Collected

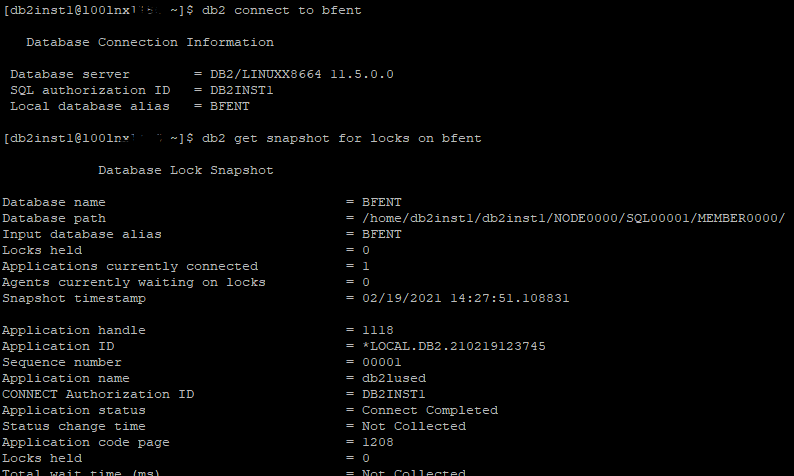

[db2inst1@l00lnx1186 ~]$3) get snapshot for locks on dbname : Lock information at the database level, and application level for each application connected to the database. Requires the lock switch.
Example:
db2 connect to db <db_name>
db2 get snapshot for locks on dbnameOutput:
In next post we will see DB2 Snapshot information | Monitor level : Table Space. Please Like, Follow, Share & Subscribe.
